Kajaste V1

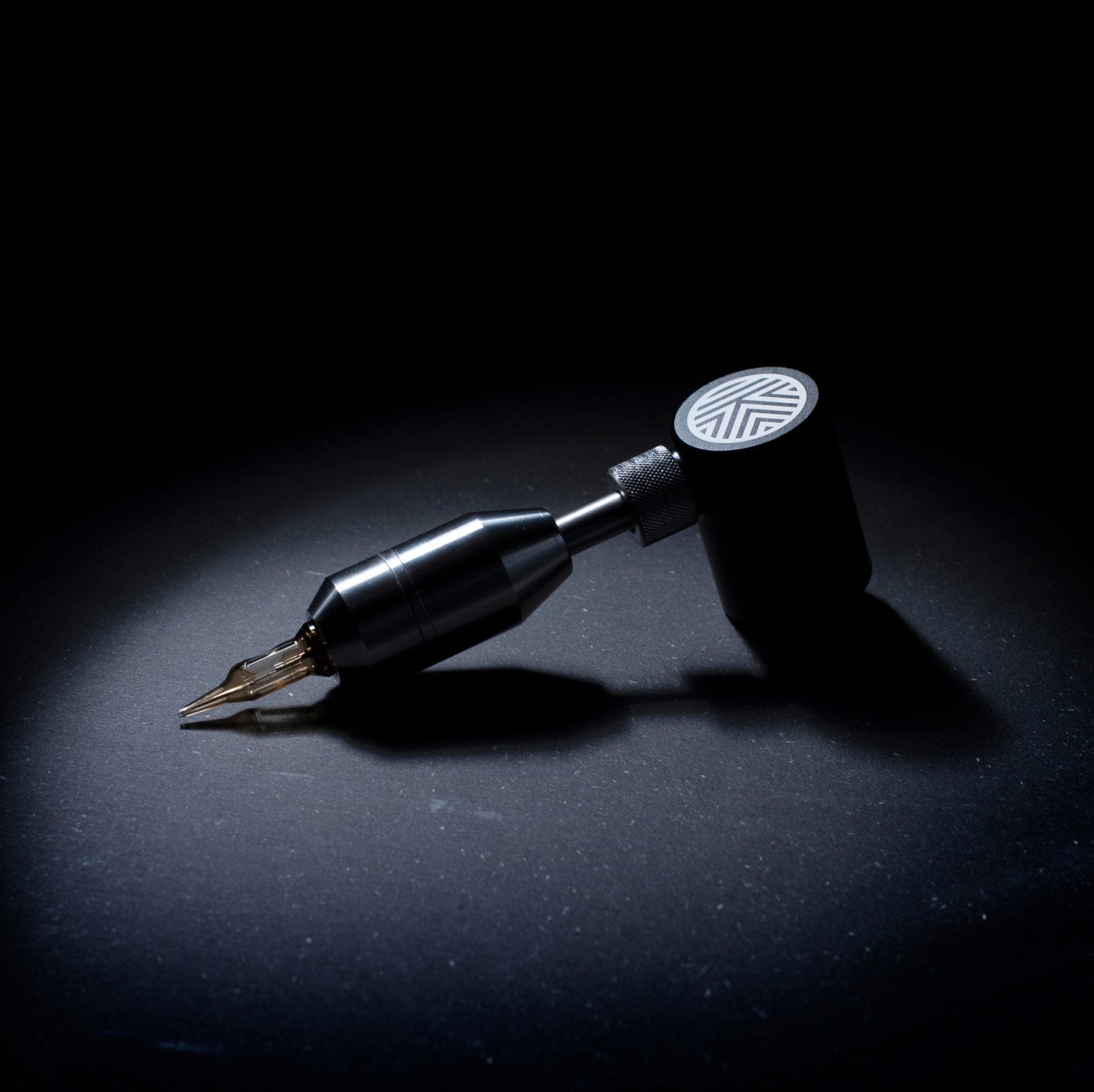

Kajaste V1 tattoo machine

Features

• brushless DC engine
• very precise tolerances
• 5mm stroke length
• quiet, extremely low vibration
• allows you to use a traditional power source, a power bank, or even a fast charger as a power source

A perfect match for your technique

• perfect for all tattooing techniques
• ergonomic to use
• optimal balancing

A perfect match for your needles

• compatible with most membrane cartridge needles
• optimized needle fit on the grip

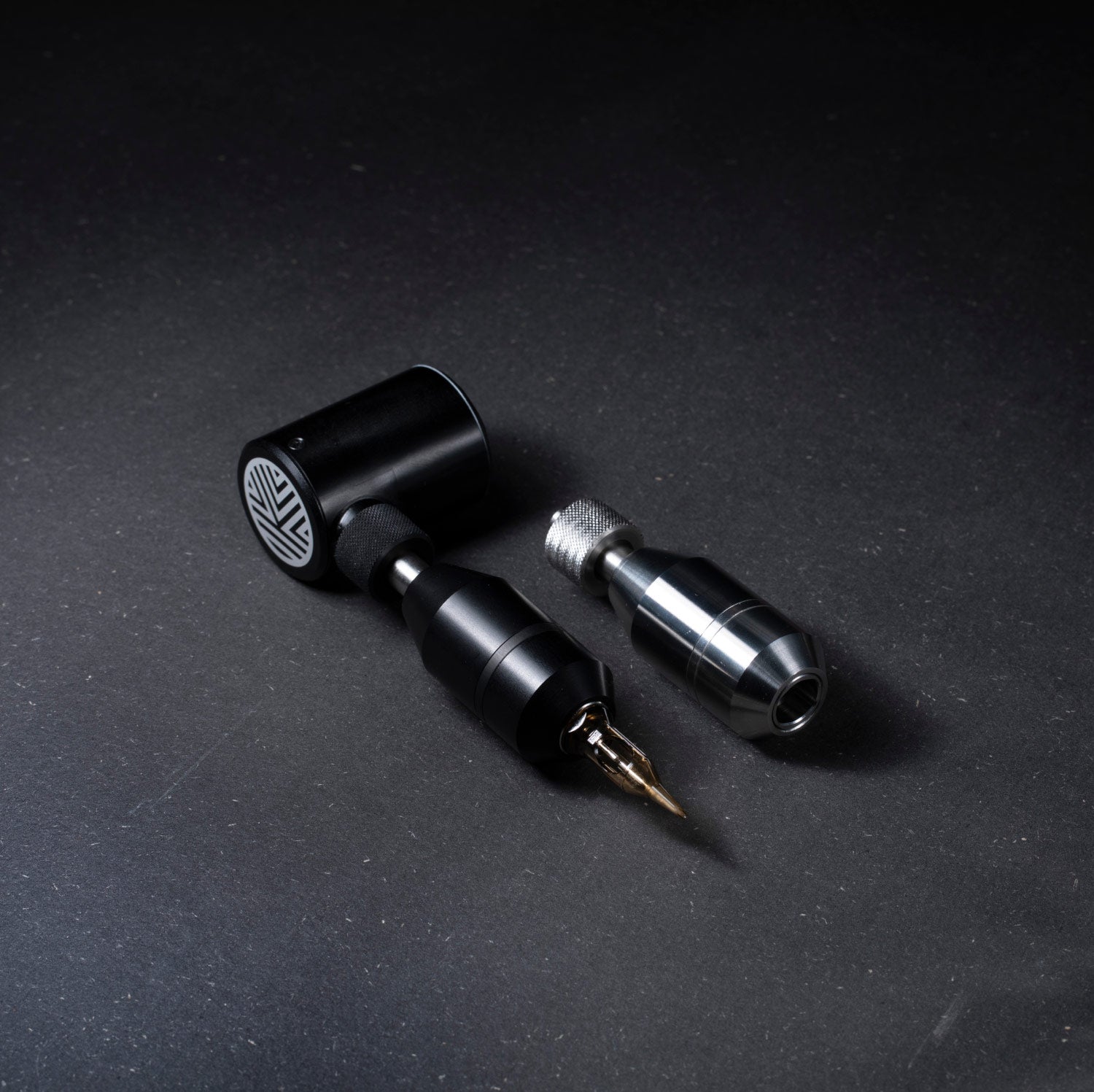

• grips available in stainless steel and aluminium

It will hardly make you sexier, but it will definitely speed up your work

• speeds up colour packing
• torque and speed can be adjusted independently with an Apple app

Less pain, yes gain

• causes less damage to the skin, easier and faster healings

It’s strong. And so beautiful.

• aluminum body
• titanium plunger bar
• powerful enough to drive even the biggest magnums on the market
• universal grip fitting, can be used with any standard grips, also disposables
• machine and usb-c cord can be protected with the same protective sleeve
• grips can be cleaned in an ultrasonic cleaner and sterilized by all sterilization methods

Easy to use, easy to power

• compatible with all modern power supplies
• usb-c connector with durable and flexible cable
• allows you to use a traditional power source, a power bank, or even a fast charger as a power source
• not available on battery due to an extra powerful engine

Safe and secure to work with

• The grip fastener is universal, but it has its own driver that locks the Kajaste grip and its needles automatically to the correct position

 –

Technical data

• RPM range: 1000-6500
• Input voltage with provided cables: USB type A 5V, 2.1 A or 6.3 mm plug 7-17V
• Stroke length: 5mm
• Max. needle size: +100
• Power connection: USB type C, 5V 2.1A
• Drive: brushless motor DC
• Dimensions: D: 35mm, H: 49mm, L: 115-124mm with grip
• Weight: 90g without grip

Made in Finland

Sale package includes:

• Kajaste V1 machine
• Kajaste USB C plug - USB C plug
• Kajaste USB C - Mono Jack 6.3mm adapter
• Optionally Kajaste grip aluminium or Kajaste grip stainless steel
